CMT introduces a groundbreaking innovation in dado cutting—the Dado Pro Stacked Dado Set with Lock Spacers, the first-ever dado set to achieve UNI EN847 compliance. This unique design ensures that while in rotation, the assembled elements never come into contact, preventing friction and wear for safer and more precise cutting. Made in Italy, this premium dado set is an ideal choice for woodworkers using 5/8" (15.88mm) arbor table saws, delivering exceptional performance across a variety of materials.

The Dado Pro is designed for flat-bottom grooves and produces virtually splinter-free cuts in solid wood, laminates, melamine, and veneer plywood. The combination of ATB + FTG grind teeth with a 12 ATB pitch and -12° rake angle ensures clean and precise dadoes, grooves, and rabbets with minimal tear-out.

Features

• UNI EN847 compliant – first-ever dado stack designed for maximum safety and durability.
• Premium Italian-made design, optimised for 5/8" (15.88mm) arbor table saws.
• ATB + FTG grind with 12 ATB pitch and -12° rake angle for precise, clean cuts.
• Lock spacer system eliminates the need for traditional shims, allowing for micro-thin adjustability.

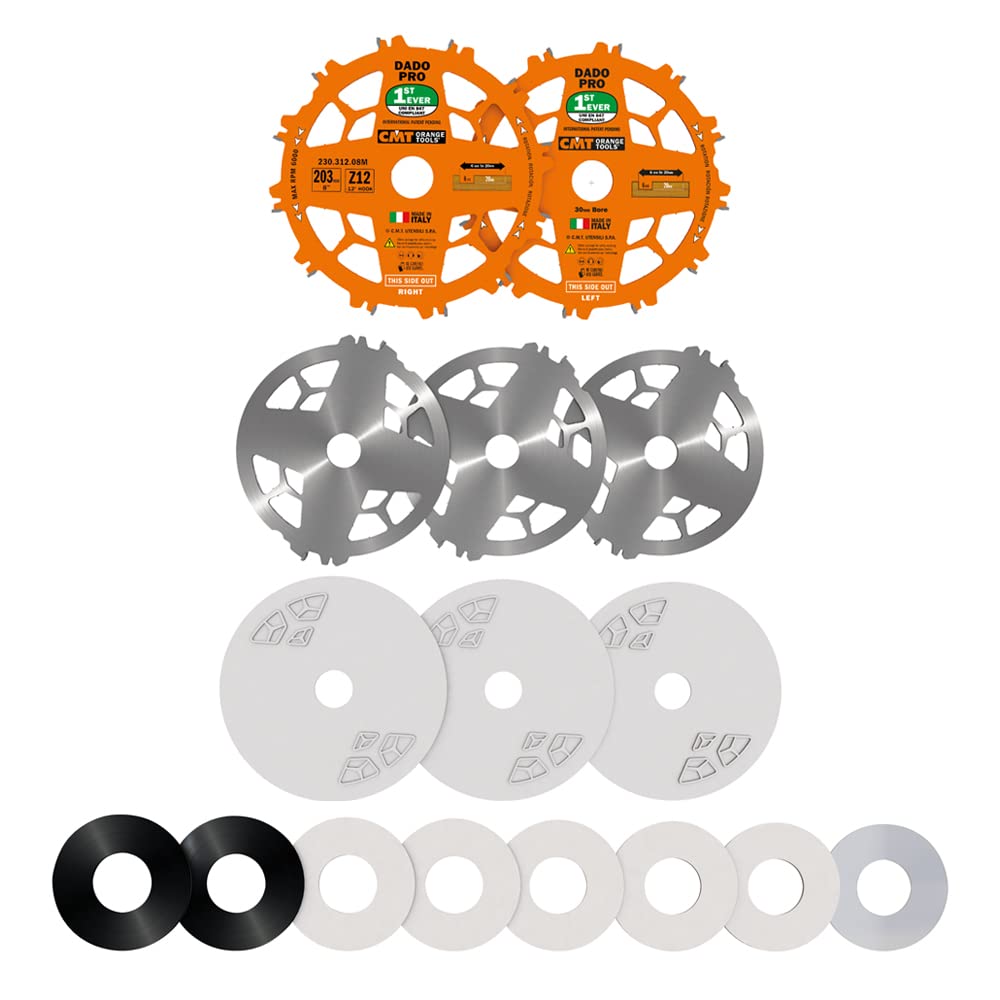

• Includes 9 shims (plastic and magnetic) and 3 lock spacers for enhanced precision.

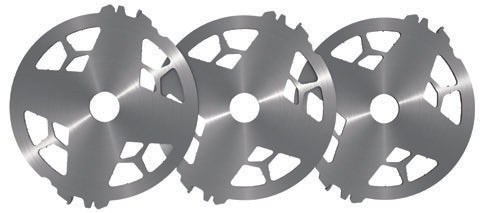

• Outer left and right main blades plus 3 chipper blades for versatility in dado width adjustment.
• Orange Shield Coating resists heat, gumming, and corrosion for extended blade life.

With its cutting-edge technology and superior build quality, the CMT Dado Pro Stacked Dado Set with Lock Spacers is the ultimate solution for woodworkers seeking precision, safety, and ease of use.
