The World's Most Versatile 18" (457mm) Precision Woodworking Triangle

A first-of-its-kind tool, the MTR-18 combines the accuracy of a CNC-machined precision triangle with a range of included accessories enabling countless linear and angle measurement, squaring and clamping/fixturing applications. Designed to take advantage of popular 20mm hole patterned worktops, the MTR-18 can be secured through the worktop with the included DoubleGroove Bench Dogs and M8 SpeedKnobs. Dial in a precise angle with the MTR-18's large protractor scale with parallax-free pointer—and then lock it in place. With a long edge of more than 635mm (25") and body thickness of over 6mm (1/4”), the MTR-18 can even act as a removable fence for the Festool MFT/3 or any 20x96mm patterned work surface. When used in conjunction with an MFT/3 style 20mm worktop, the MTR-18 sets the standard for accuracy and speed of set-up.

• Supremely Accurate: Machined on high-precision CNC machining centres and made from dimensionally stable precision aluminium tooling plate guaranteed square to within .001" over its 18" length (as verified using automated CMM).
• Removable Foot: Enables freestanding use or quick angle measurement off the edge of your table or workpiece. Includes hex driver and stainless socket screws which can be conveniently stowed in tapped holes along the foot when not in use. With foot, the MTR-18 functions like a super-sized speed square to guide any circular saw on the job site.
• Festool Compatible: Arc slot is 20mm wide, perfectly positioned to align with the holes on your Festool MFT/3 table, and accept included DoubleGroove™ Large Dogs—providing an accurate, repeatable, and adjustable means of rapidly aligning workpieces or ensuring the squareness of your Festool fence, guide rail and grid pattern.
• Repeatable Accuracy: Cardinal angles of 0, 15, 22.5, 30, and 45 degrees can be quickly set with included indexing pointer and brass locking knob to create regular shaped polygons.
• Edge Locator Pins: The shorter pair of M6 index pins can be attached to one side of the triangle's face, acting as a foot while leaving the opposite face unobstructed for layout work.
• Connecting Pins: Accurately square the Festool MFT/3 guide rail to the fence, even when the rail is elevated. Can also be used to connect the triangle to a guide rail using UJK Dog Rail Clips (not included). See image depiction.
• Dual Dimensioned: Our triangle products are easy to read. Both Imperial or Metric measurement included (one on each side).
• Clamping Squares: Transform the MTR-18 into a large clamping square. Secure with clamps (not included) to square cabinet case during assembly/glue-up.
• Made in the USA: The MTR-18 Precision System Triangle Set is manufactured in low volume and stocked in Minnesota.
• NEW! Custom Systainer Kaizen Foam Insert: Keep all of your MTR-18 accessories in one place with the included custom Kaizen Foam insert, fitting T-LOC and Systainer3 enclosures. Systainer not included, but we do offer our very own Systainer3 M 112 enclosure which will fit this insert.

Now Standard: Master Accessory Kit + Kaizen Foam Systainer Insert

Previously available as an additional option, the MTR-18 Master Accessory Kit is now included with every MTR-18 triangle set. This comprehensive accessory package includes everything you need to secure the MTR-18 to your perforated worktop, dial in infinite and repeatable angles, and utilize the triangle as a jumbo clamping square. This kit includes a finely machined pointer with parallax-free viewport, a brass locking pin and ergo knob with t-bolt, four DoubleGroove™ Dogs (two DoubleGroove Standard Fit Large Dogs and two DoubleGroove Close Fit Large Dogs), two M8 SpeedKnobs™, two clamping angles, and two Allen drivers. To keep all these accessories together, we also include a custom Kaizen Foam Systainer insert to hold all components, plus a handy stowage tin to include the very small hardware as well.

6 Ways to Use the MTR-18: How many more will you dream up?

Setting Any Angle on a Large Workpiece
With a long and extremely accurate edge, the MTR-18 can be used to cut any angle in any size workpiece; the only limitation being your length of guide rail or cutting surface! Here, the MTR-18 is setting the angle and acting as the fence for a large panel before being cut with a track saw.

Connecting Triangle to Guide Rail—No 20mm Worktop Needed
The MTR-18 can be directly attached to your guide rail by way of UJK Dog Rail Clips. With the included bench dogs projecting beneath the indexing pointer, you can now reference off the front edge of your workpiece to cut at any angle, without requiring an MFT/3 or similar 20mm patterned worktop.

Marking Perfect 90s or 45s with the Removable Foot or Edge Locator Pins
The MTR-18 excels at standard triangle duty, such as marking perfect angle or perpendicular lines on your workpiece. Use the removable foot for this task, or attach the included Edge Locator Pins which form a line on the face of the triangle. The longer Edge Locator Pins can also help you align the triangle against curved edges of your workpiece.

Squaring Cabinet Casing for Assembly or Glue-Up
Install the included clamping angles on the MTR-18 and use two clamps (not included) to square cabinet casings for dry fitting or glue-up.

Square MFT/3 Guide Rail to Fence

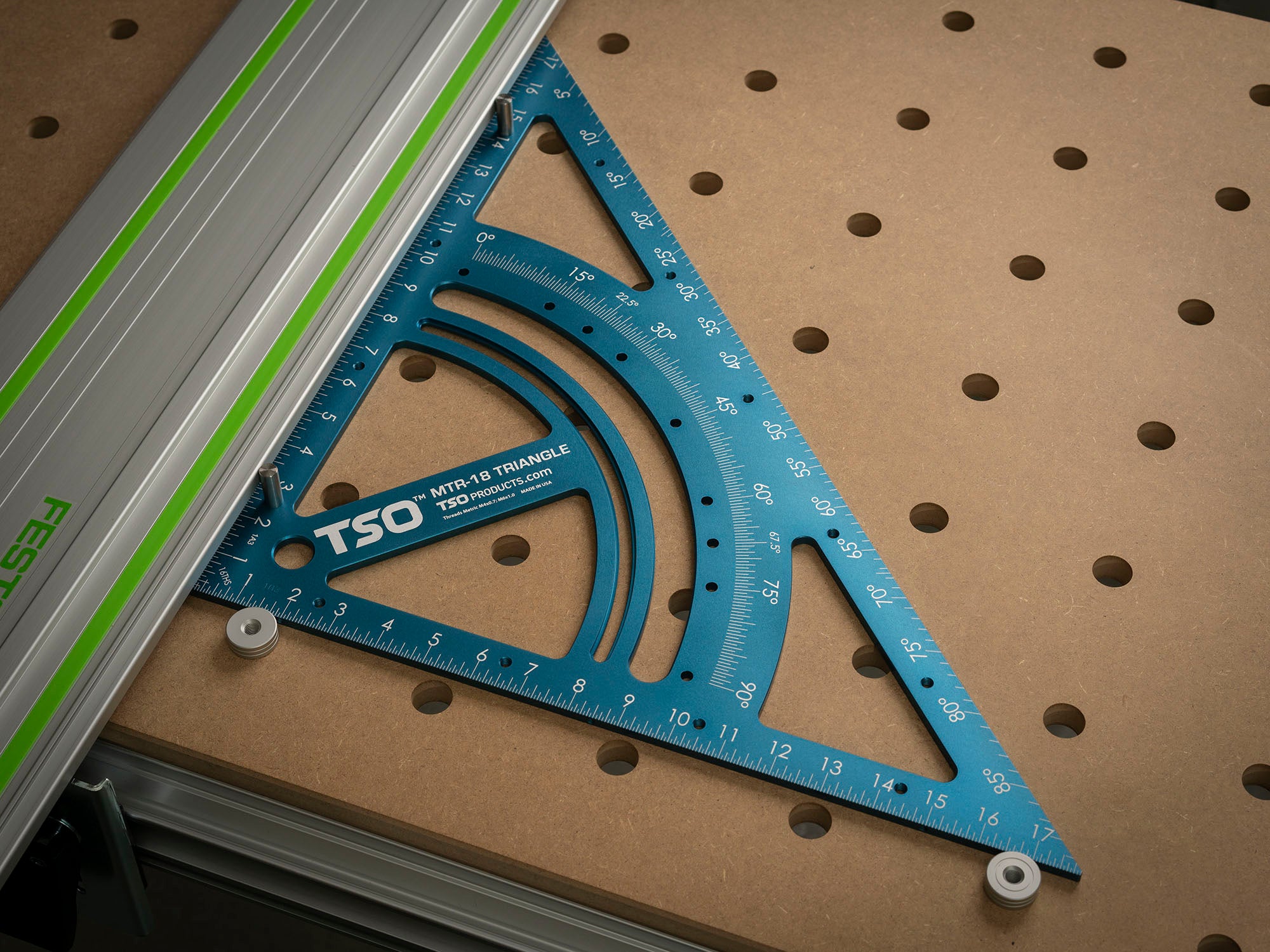

The single most important angle to calibrate in a Festool MFT/3, ensuring the guide rail sits at a perfect 90 degrees to the back fence, takes mere seconds with the MTR-18. And with the included pins, you can even check for squareness while the guide rail is in its elevated position.

Squaring Guide Rail to 20mm Hole Pattern
With the included DoubleGroove bench dogs, it's easy to establish squareness between your 20mm worktop and guide rail.

What's Included in the Box

• Custom Kaizen Foam Systainer Insert for MTR-18 Accessories
• MTR-18 Precision Triangle Body
• MTR-18 Removable Foot
• M6 Short Pins for Edge Indexing (2)
• M6 Long Pins for Squaring/Connecting (2)
• Pointer with Parallax-Free Viewport
• Brass Locking Pin, M6 Ergo Knob & T-Bolt
• DoubleGroove Large Dogs - Standard Fit (2)
• DoubleGroove Large Dogs - Close Fit (2)
• M8 SpeedKnobs (2)
• Clamping Angles (2)
• M4 Socket Head Cap Screws (6)
• M6 Socket Head Cap Screws (6)
• 3mm Hex Driver
• 5mm Hex Driver
• Storage Tin for Above Small Parts

Prioritizing Precision
At TSO Products, we prioritize precision and quality in every tool we make. Our Precision Triangles are crafted from Alca 5 tooling plate, which provides exceptional flatness, stability, and accuracy for your projects.

While we emphasize visual consistency across our products, the nature of cast tooling plate may result in some minor variations in anodizing appearance. A challenge that all manufacturers of similar tools face. In our Triangle product line, we have chosen to prioritize function over uniform color to ensure the highest level of precision and reliability.
